What is the Veinoflow SCD system?

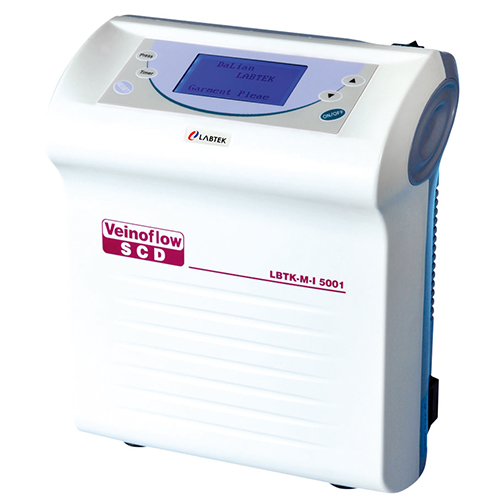

The Veinoflow SCD system is designed to apply intermittent pneumatic compression to increase venous blood flow. The System consists of the controller, the tubing sets (provided with the controller) and single-patient use garments (purchased separately from this controller).

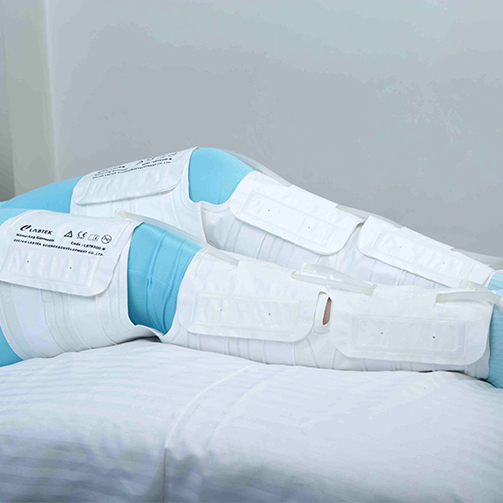

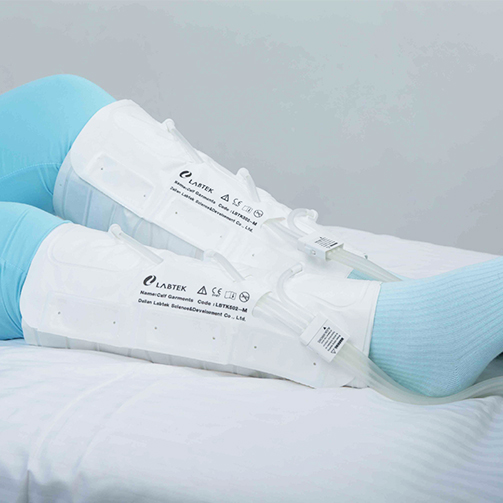

The garments, both leg sleeves and foot cuffs, compress the limbs to enhance venous blood movement. After the compression, the controller measures the time it takes for the limbs to refill with blood and waits that period of time before the next compression is initiated.

The garments are made of a soft, lightweight, non-woven material. The soft inner & outer liners promote patient comfort and compliance.

The Veinoflow SCD offering the user the option of two different types of compression with one controller – leg/calf compression and foot compression. It also allows for foot only compression, leg/claf only compression, or combined foot and leg/calf compression. This gives the end user more flexibility for treatment options.

The battery operation makes the device transportable for uninterrupted protection throughout a patient’s stay in the hospital. The more active or mobile patients can continue the protection without being tethered to a wall outlet.

It includes a flexible and transportable design, audible and visible alerts for any error and a large LCD screen for visibility.

Indications

• Leg compression:

Veinoflow SCD system’s leg garment compression is indicated for:

Deep vein thrombosis and pulmonary embolism prophylaxis

• Foot compression:

The use of the Veinoflow SCD system with Foot Cuffs is also indicated for:

(1) Circulation enhancement

(2) Deep vein thrombosis prophylaxis

(3) Edema - acute, edema - chronic

(4) Extremity pain incident to trauma or surgery

(5) Leg ulcers

(6) Venous stasis / venous insufficiency

FEATURES

• All-in-one controller
• Refill detection
• Lithium ion battery
• Garment detection
• Single-leg operation
• Light weight
• One-touch operation
• Automatic pressure adjustment
• Automatic battery charge
• Safety system shutdown

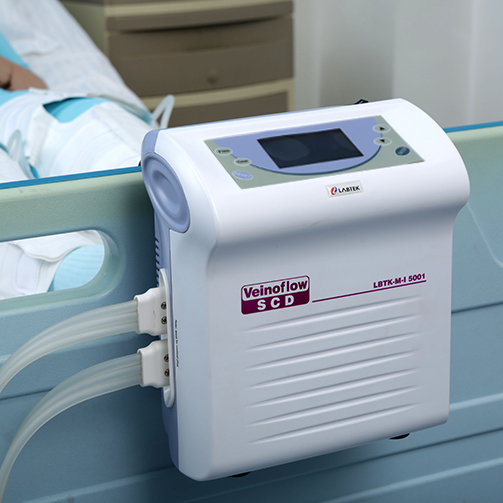

• Integrated bed mount
• Integrated handle
• Hospital grade power cord
• Simplified audible and visual alarms

• Light-weight tubing

Contraindications

• Leg compression:

In the leg garments area exit the following affections:
a) Dermatitis
b) Vein legation (immediate post-operation)
c) Gangrene
d) Recent skin graft
e) Severe arteriosclerosis or other ischemic vascular disease
f) Massive edema of the legs or pulmonary edema from congestive heart failure
g) Extreme deformity of the leg

h) Suspected pre-existing deep vein thrombosis

• Foot compression:

a) Conditions where an augment of fluid to the heart may be detrimental
b) Congestive heart failure

c) Pre-existing deep vein thrombosis, thrombophlebitis or pulmonary embolism
