Veinoflow SCD LBTK-M-I 5005 ---- "NEW-SMART Compression"

Veinoflow SCD LBTK-M-I 5005 smart compression system delivers compression to the leg/calf, foot, or both. It allows for foot only compression, leg only compression, or combined foot and leg/calf compression. It aids in the prevention of Venous Thromboembolism (VTE), including Deep Vein Thrombosis (DVT) and Pulmonary Embolism (PE) in the at-risk patient.

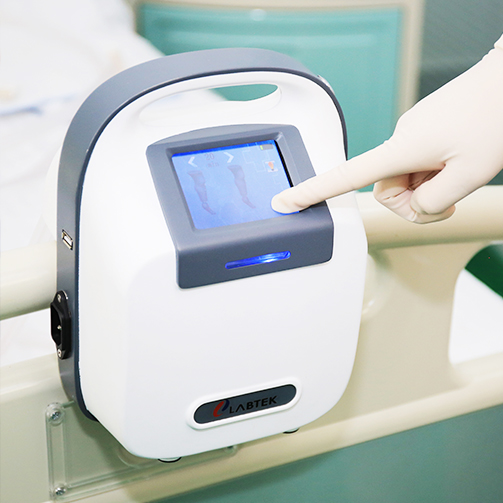

It is the next evolution of IPC and is designed to increase the venous blood flow. It includes a flexible and transportable design, visible and audible alerts for any error, low noise, ease of cleaning, and a large touchscreen LCD display. The LCD display is easy to use even when wearing medical gloves.

The system consists of:

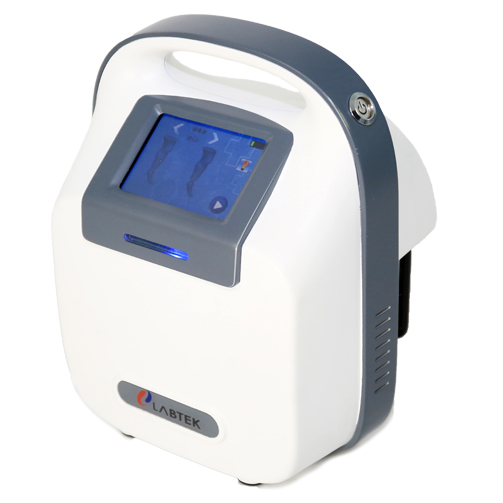

The controller
Tubing sets (provided with the controller)

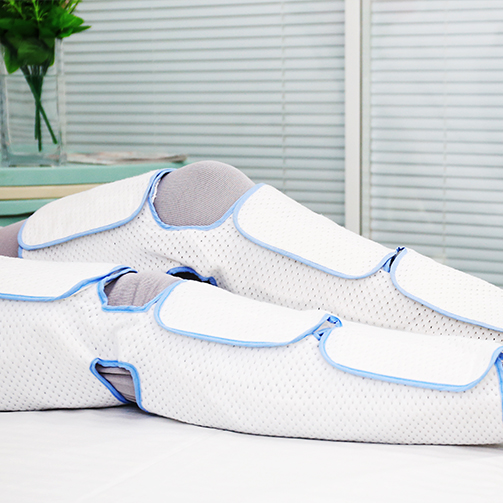

Single-patient use leg garments and foot cuffs (purchased separately)

Veinoflow SCD provides a number of unique treatment features for every patient. It's designed to monitor the rate at which the veins in the feet and legs refill with blood. This allows the machine to adjust compressions rates in order to optimize the amount of blood flow.

The system has also new feature that can be used to monitor the amount of time compression therapy is delivered either by shift, day, or during an entire hospital stay. It operates in the background, so that it does not interrupt normal operation.


Leg compression:

Veinoflow SCD system’s leg garment compression is indicated for:

Deep vein thrombosis and pulmonary embolism prophylaxis

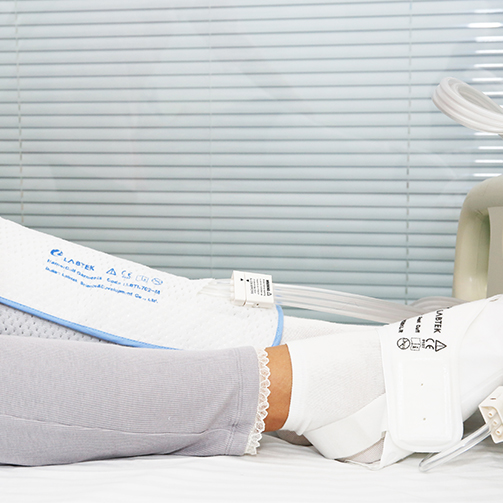

Foot compression:

The use of the Veinoflow SCD system with Foot Cuffs is also indicated for:

(1) circulation enhancement, (2) Deep vein thrombosis prophylaxis (3) edema - acute, (4) edema - chronic, (4) extremity pain incident to trauma or surgery, (5) leg ulcers, and (6) venous stasis /venous insufficiency.


Compression Type:

   Leg Sleeves: Sequential, Gradient | Foot Cuffs: Uniform

Compression Cycle:

   Leg Sleeves: 11 Seconds Compression | Foot Cuffs: 5 Seconds Compression & Decompression time based upon Refill Detection measurement

Set Pressure:

  Leg/Calf Sleeves: 45 mmHg | Foot Cuffs: 130 mmHg

  The operating pressure can be adjusted to meet individual patient requirements.
  Leg/Calf Sleeves: 30-45-60 mmHg
  Foot Cuffs: 130-140-150-160 mmHg

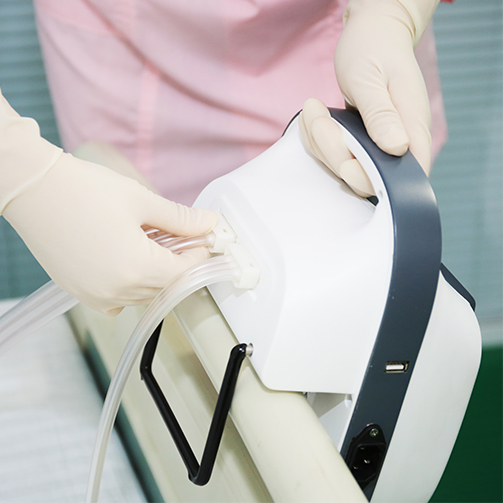

Bed Hook: Yes
Power Cord: Yes
Audible/Visual Alarms: Yes
Lithium Battery: Yes
Power Cord: Yes

Tubing Set: Included, set of two individual assemblies


Leg compression:

1) In the leg garments area exit the following affections:
a) Dermatitis
b) Vein legation (immediate post-operation)
c) Gangrene
d) Recent skin graft
2) Severe arteriosclerosis or other ischemic vascular disease
3) Massive edema of the legs or pulmonary edema from congestive heart failure
4) Extreme deformity of the leg

5) Suspected Pre-existing deep vein thrombosis

Foot compression:

6) Conditions where an augment of fluid to the heart may be detrimental
7) Congestive heart failure

8) Pre-existing deep vein thrombosis, thrombophlebitis or pulmonary embolism

And last but not least- INTERNET CONNECTIVITY (optional)

Now you can get the Veinoflow SCD LBTK-M-I 5005 system by either paying the price up-front OR paying smaller monthly installments.

Catalogue Download
